HIGH-SPEED STREAMING
INFINICAMInfinicam

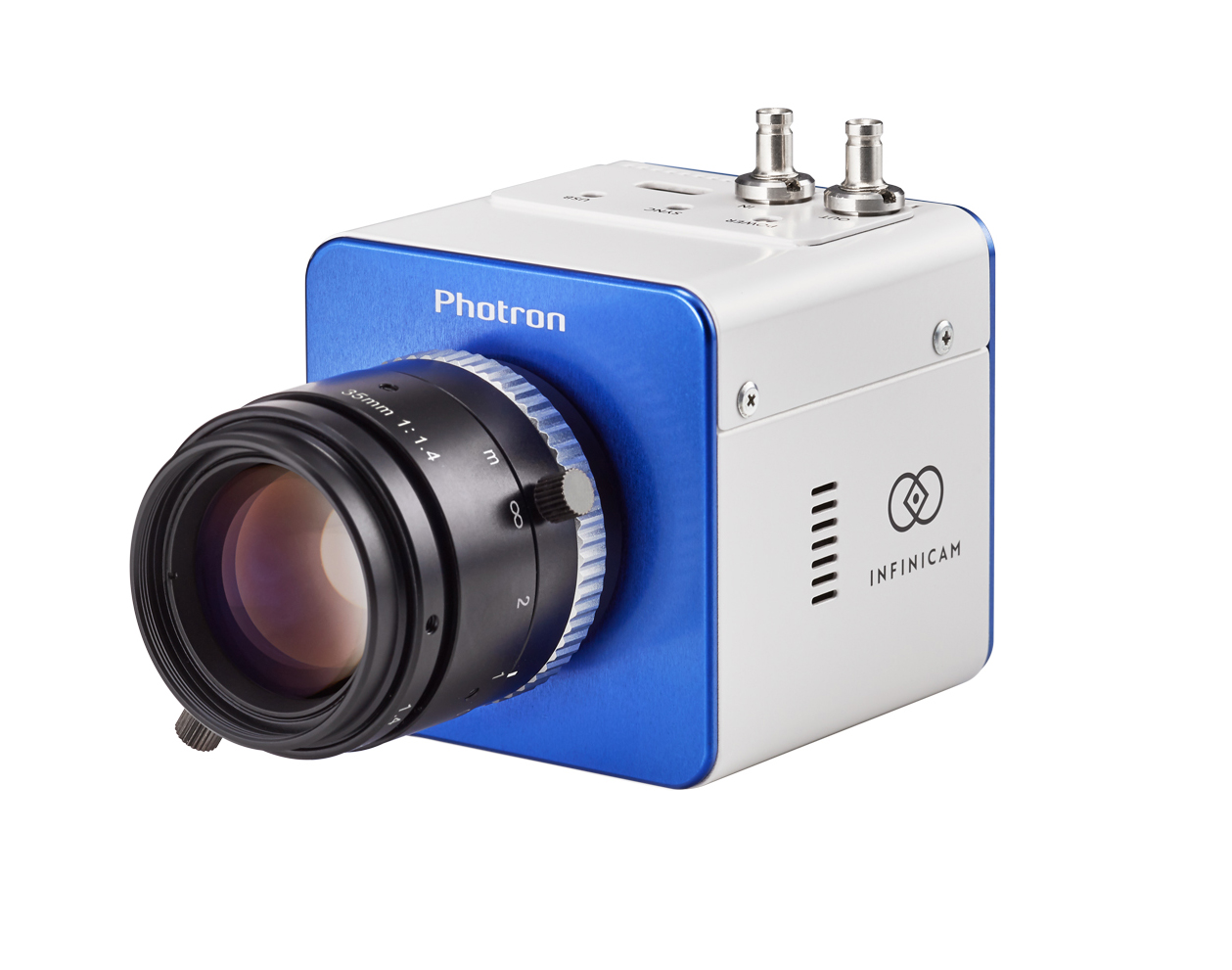

INFINICAM is a high-speed streaming camera capable of capturing and transferring 1.2-megapixel of image data to PC memory at 1,000fps via USB 3.1. The latest version of the SDK supports Python, a common language in the computer vision/machine vision field, in addition to C++. This makes real-time image processing with INFINICAM possible with easy intuitive programming. INIFINICAM is also compatible with StreamPix and TroublePix Software from Norpix to provide a comprehensive off-the-shelf high-speed camera solution.
1-MEGAPIXEL CMOS IMAGE SENSOR
1246 x 1024 pixels at 50 to 988fps
1246 x 1008 pixels at 1,000fps
1246 x 496 pixels at 2,000fps
1246 x 176 pixels at 5,000fps
High-speed image processing made simple
High-speed image processing previously required a dedicated board and complex cabling, but now can be implemented with a single general-purpose USB 3.1 Type C cable and a PC.
Compact, Lightweight, C-mount
The compact and lightweight housing, (55mm x 55mm x 55mm, 280g), makes it easy to install. The C-mount lens compatibility allows for the use of a wide range of lenses.
Real-time high-speed image compression
Real-time compression to less than 1/4 the original data volume enables highspeed 1.2-megapixel image streaming at 1,000fps and up to 30,000fps at 1,246 x 16 pixels.
Open development environment
The latest SDKs, development environment, and manuals can be downloaded from: www.photron.com Sample applications can be accessed at GitHub.
Data capture with just four lines of programming
Python is now supported, making programming easier and more intuitive. Utilizing Python script, the camera may be controlled with as few as four lines of code.
Real-time image processing
Real-time image processing can be performed at the maximum speed of the camera. A sample app is available with pre-programmed source code (C++ and Python).
